Figure 3

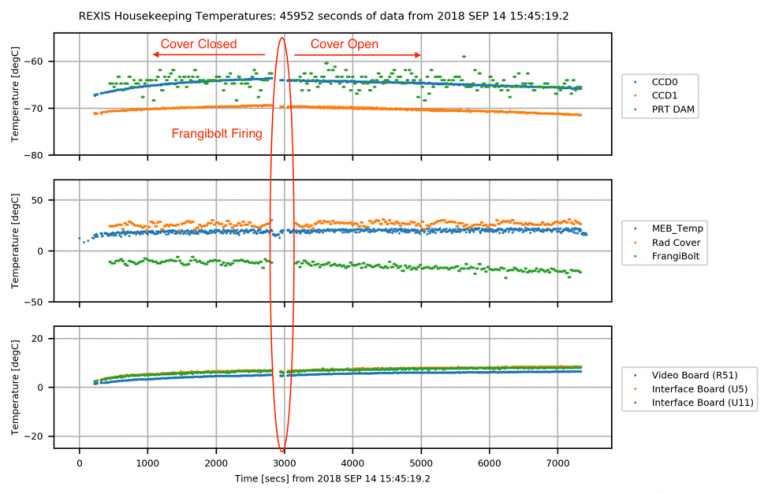

Figure 3: The REXIS housekeeping temperatures before and after firing also show changes expected with the cover open. Both the CCD temperatures (top plot) and the Frangibolt housing temperature (middle plot, “Frangibolt”) decrease after the firing event indicating that the cover and its heater are no longer thermally coupled to the rest of the instrument.

---
